La nuova A200 si basa fondalmentalmente sulla Dimage A2, con qualche affinamento estetico e di prestazioni. Il nuovo mirino, sempre elettronico non si attiva quando viene avvicinato l'occhio ma e' sempre attivo. L'autofocus e' senza inseguimento del soggetto.

Sensor • 2/3" Type CCD
• 8.3 million total pixels
• 8.0 million effective pixels
• 12-bit ADC

Image sizes • 3264 x 2448
• 3264 x 2176 (3:2)
• 2560 x 1920
• 2080 x 1560
• 1600 x 1200
• 640 x 480

File formats • RAW (12 bits per pixel)
• RAW+JPEG
• TIFF
• JPEG (EXIF 2.21)
• MOV (Motion JPEG)

Quality levels • Extra-Fine
• Fine
• Standard

Movie clips *
• 800 x 600, 15 fps
• 640 x 480, 15/30 fps
• 320 x 240, 15/30 fps
• All maximum 15 minutes (or until storage full)
• Normal / Night Movie / Time lapse Movie
• With audio

Lens • 7x optical zoom
• 28 - 200 mm equiv.
• F2.8 - F3.5
• 16 elements in 13 groups (including 2 AD glass, 2 aspherical elements)
• Manual mechanically linked zoom ring
• Filter thread 49 mm

Digital zoom * • Normal mode: 2x
• Interpolated mode: 4x

Stabilization Anti-Shake system (CCD stabilized)

Auto focus * • Video AF
• Wide focus area
• 11 point selectable
• Flex Focus Point in Spot focus area mode

Focus modes * • Single
• Continuous
• Full-time AF
• Manual focus (magnifier during MF)

Manual focus Focus by wire ring at rear of lens barrel

AF assist beam Unknown

Focus range • Normal: W 0.5 m - Infinity, T 2 m - Infinity
• Macro (at wide): 21 - 51 cm (8.3 - 20 in) *
• Macro (at tele): 13 - 50 cm (5.1 - 19.7 in) *
* From front of the lens

Shooting modes • Program AE (with shift)
• Aperture Priority
• Shutter Priority
• Manual exposure
• Scene modes

Scene modes • Portrait
• Sports
• Sunset
• Night portrait

Metering * • Multi-segment (256 segments)
• Center-weighted average
• Spot (center or with Flex Focus Point)

Sensitivity equiv. * • Auto
• ISO 50
• ISO 100
• ISO 200
• ISO 400
• ISO 800

Exposure compen. • -2.0 to +2.0 EV
• 0.3 EV steps

Exposure bracketing • Three images
• 0.3 or 0.5 EV steps

Digital Enhanced bracketing * White balance

Shutter speed * • 30 - 1/3200 sec (1/1600 sec in S or M mode)
• Bulb (max 30 sec)

AE lock AE lock button or shutter release half-press

Noise reduction User controllable (dark frame)

White balance * • Auto
• Daylight
• Tungsten
• Shade
• Cloudy
• Flash
• Fluorescent (1 & 2)
• Custom (2 memories)

Color modes * • Natural Color (sRGB)
• Vivid Color (sRGB)
• Portrait (sRGB)
• Adobe RGB
• Embedded Adobe RGB
• Black and white (neutral and toned)
• Solarization

Color spaces • sRGB
• Adobe RGB

Color modes • Natural color
• Vivid color
• B&W
• Sepia

Image parameters • Contrast: 3 levels
• Sharpness: 3 levels
• Saturation: 3 levels

Self-timer 2 or 10 sec

Flash * • Automatic or Manual pop-up
• Control: ADI, Pre-flash TTL, Manual flash
• Range (wide): 0.5 - 3.8 m (1.6 - 12.5 ft) - Auto ISO
• Range (tele): 0.5 - 3.0 m (1.6 - 9.8 ft) - Auto ISO
• Modes: Fill-flash, Red-eye reduction, Rear flash sync, Slow sync
• Compensation: +/- 2.0 EV in 0.3 EV steps
• Recycle: 5 sec

External flash * • Accessory shoe
• Auto-flash metering with Program/Maxxum Flash 2500 (D), 3600HS (D), 5600HS (D), Macro Twin Flash 2400,* Macro Ring Flash 1200 *
*Macro Flash Controller is necessary. Non-dedicated off-camera flash units can be used using the camera's flash-sync terminal.

Flash sync All shutter speeds

Continuous drive * • Standard: 2.0 fps (up to 5 frames)
• High-speed: 2.3 fps (up to 5 frames)
• UHS progressive drive (640 x 480): 10 fps

Print compliance • Print Image Matching II
• Exif Print (EXIF 2.2)
• PictBridge

Direct print PictBridge compatible printers

Viewfinder * • EVF (Electronic viewfinder)
• 0.44" Type TFT, 235,000 pixels
• Eye relief: 22 mm at -1 m^-1
• Dioptre: -5 ~ +2 m^-1

LCD monitor * • 1.8" TFT LCD, 134,000 pixels
• 100% frame coverage

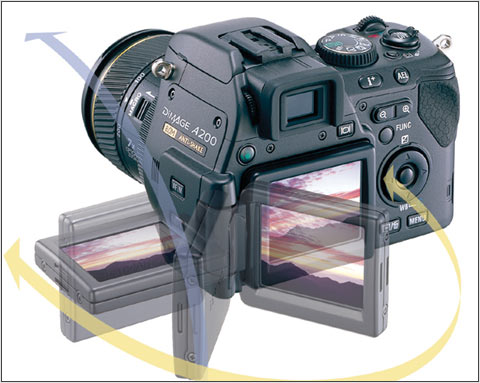

• "Vari-angle" (Flip-out and twist)

Storage • Compact Flash Type I/II
• Microdrive supported

Power * • NP-800 Lithium-Ion rechargeable battery
• Battery charger included

Connectivity * • USB 2.0 (only USB 1.1 speed)
• A/V out
• DC-IN

Dimensions * 114 x 80 x 115 mm (4.5 x 3.2 x 4.5 in)

Weight (no batt) * 505 g (17.8 oz)

Standard accessories * Neck Strap NS-DG8000, Lens Cap (49mm) LF-1349, Accessory Shoe Cap SC-10, AV Cable AVC-500, USB Cable USB-3, DiMAGE Viewer, ULEAD Video Studio 8 SE, Lens Shade DLS-3, Lithium-ion Battery NP-800, Wireless Remote Control RC-D1, Lithium-ion Battery Charger BC-900

* Specification changed compared to the DiMAGE A2
